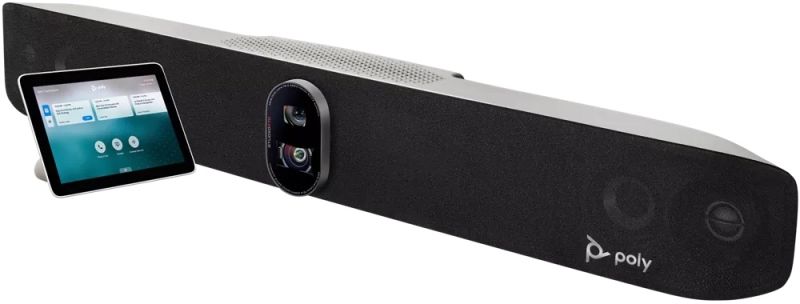

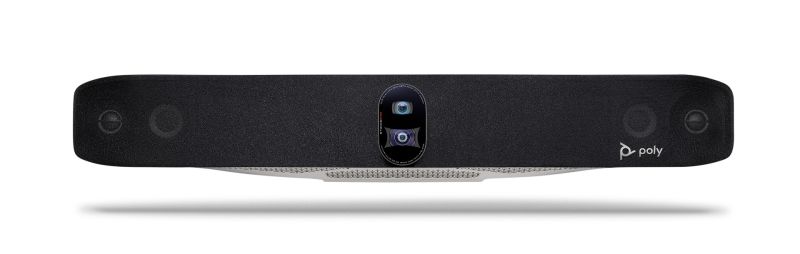

Poly Studio X70

• Poly Studio X70
• Power Supply
• 2x HDMI cable
• Ethernet Cable
• Wall mount

• 22 kHz bandwidth with Polycom Siren 22 technology
• 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
• 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A

• H.264 AVC
• H.264
• High Profile
• H.265

NETWORK

• IPv4
• IPv6
• 2x 10/100/1G Ethernet (RJ45)
• Auto-MDIX
• H.323 and/or SIP up to 6 Mbps running Poly Video App
• Polycom Lost Packet Recovery (LPR) technology
• Dynamic bandwidth allocation
• Reconfigurable MTU size
• Web proxy support: Basic, Digest, NTLM

• INPUT: 1x HDMI
• OUT: 2x HDMI
• Touch display compatible

• Media encryption (H.323, SIP) -AES-128 -AES-256
• H.235.6 support
• Authenticated access to admin menus, web interface, and API
• Local account password policy configuration
• Security profiles
• Local account and login port lockout
• Secure defaults
• Remote logging with support for TLS
• Active directory external authentication
• Electronic privacy shutter

• 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 30 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 30 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps

• VESA mount kit
• Stand
• Poly TC8
• Poly Bluetooth remote control
• Poly Trio
• Studio Extension Microphone

• UHD (3840 x 2160)
• FHD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x 720p)
• XGA (1024 x 768)
• SVGA (800 x 600)
• Output UHD (3840 x 2160)
• WUXGA (1920 x 1200)
• HD (1920 x 1080)
• WSXGA+ (1680 x 1050)
• SXGA+ (1400 x 1050)
• SXGA (1280 x 1024)
• HD (1280 x 720)
• XGA (1024 x 768)
• Content frame rate 5–60 fps (up to 4K resolution at 15 fps in call)

• All cloud service providers through Poly Video App Mode
• USB device mode
• Support for native 3rd party applications includes:Zoom
• GoToRoom
• RingCentral
• StarLeaf
• DialPad

• Room participant counting detection
• Air Quality Sensor1 - CO2 and Volatile Organic Compounds (VOC)

• Auto sensing power supply
• Typical operating voltage/power37 VA @ 120 V @ 60 Hz
• 37 VA @ 230 V @ 50/60 Hz
• Typical BTU/h -65

• Poly content app
• Apple Airplay
• Miracast
• HDMI input
• Whiteboarding

• Operating temperature -0 to 40 °C
• Operating humidity (non-condensing) -15 to 80%
• Non-operating temperature --40 to 70 °C
• Non-operating humidity (non-condensing) -5 to 95%
• Maximum altitude -16,000 ft

• 2 lenses -120-degree HFOV, 70-degree HFOV
• 140-degree DFOV, 78-degree DFOV
• 2x 20 Megapixel sensors
• 7.3x digital zoom
• UHD 2160p (4K) capture resolution
• Automatic group framing
• Automatic speaker tracking
• Additional cameras can be added via USB

• 840.18 mm / 33.1 in (W) x 135.38 mm / 5.3 in (H) x 117.33 mm /4.6 in (D)
• 7.05 lbs/3.2 kg

• 1x 3.5 mm

• Cloud: Poly Lens service

• 2x MEMS microphones, plus 2x 2nd order microphones
• Microphone pickup range up to 25 ft

• One-year return to factory parts and labor 1 Designated for future use 2 Used for connected peripherals 3 Used for connected PC

• 1x 3.5mm
• Two-way Stereo Speakers with Custom tuned bass ports
• Mid speakers
  • Power Handling (RMS) 20 Watts
  • Power Handling (MAX) 30 Watts
  • Sensitivity 83 dB
• Tweeter speakers -Power Handling (RMS) 15 Watts
  • Power Handling (MAX) 20 Watts -Sensitivity 89 dB
• Custom Tuned Bass Ports for rich sound

• 2x USB-A (3.0)2
• 1x USB-C3
• Bluetooth® 5.0
• 2x RJ451
• WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
