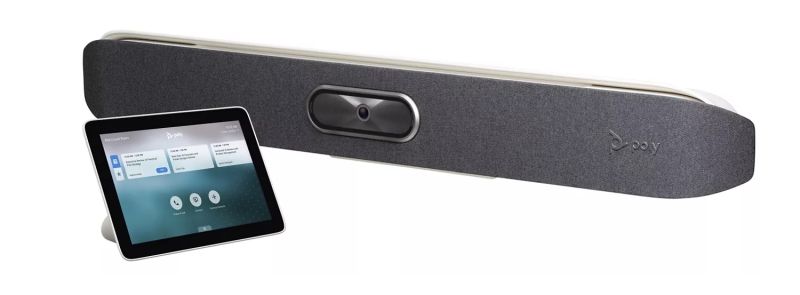

POLY STUDIO X50 & TC8

$5,299.00

Full board-room-quality audio, and knock -your-socks-off video experience. Poly's first Android-based video appliance for Google Meet, an All-in-one Video bar for Medium Rooms with Touch Control Video conferencing room solutions certified for Microsoft Teams, Zoom, and Google Meet for the modern workplace. This solution requires a dedicated room license to register the device to your meeting platform (not included). A minimum of 1-year Poly Advanced Support Services is required with each unit (see 1 or 3-year options)

AvailabilityIn stock
SKU
2200-86270-012
Categories

Poly's first Android-based video appliances for Google Meet.

All-in-one certified Google Meet Appliance that is flexible and easy to setup for rich collaboration experience.

Keep it simple - no computer needed.

About

The Poly Studio X50 video bar delivers radical simplicity in a small, elegant package. In small- and medium-sized rooms, connect easily with whatever video collaboration software you may use. Experience full boardroom-quality audio, advanced camera capabilities, and quick wireless content—all in one sleek video bar. And say goodbye to unnecessary pucks, cords, and cables, along with the PC or Mac to drive the meeting, since the Poly Video OS runs the show. Easy to install, easy to manage.

  • Ideal for small to medium sized rooms.
  • Surround everyone with the rich, legendary sound with stereo speakers that deliver immersive, room-filling audio.
  • Dual monitor support ensures you have the ideal setup for many types of rooms.
  • Be heard clearly with our next generation microphone array.

Package includes:

  • Poly Studio X50
  • Cable bundle
  • Wall mount
  • Privacy cover

Contact us for further specifications.

PRODUCT SPECIFICATIONS

Package inclues:

  • Poly Studio X50
  • Cable bundle
  • Wall mount
VIDEO STANDARDS AND PROTOCOLS
  • H.264 AVC, H.264 High Profile, H.265
  • H.239
  • H.264 video error concealment
VIDEO INPUT
  • 1x HDMI
VIDEO OUT
  • 2x HDMI
  • Touch display compatible
PEOPLE VIDEO RESOLUTION
  • 4K, 30 fps (TX & RX) from 2048 Kbps*
  • 1080p, 60 fps from 1740 Kbps
  • 1080p, 30 fps from 1024 Kbps
  • 720p, 60 fps from 832 Kbps
  • 720p, 30 fps from 512 Kbps
  • 4SIF/4CIF, 60 fps from 512 Kbps
  • 4SIF/4CIF, 30 fps from 128 Kbps
  • SIF (352 x 240), CIF (352 x 288) from 64 kbps
  • QCIF (176 x 144) from 64 kbps
  • w288p from 128 Kbps
  • w448 from 384 Kbps
  • w576p from 512 Kbps
CONTENT VIDEO RESOLUTION
  • Input
    • UHD (3840x2160)
    • HD (1920 x 1080p)
    • WSXGA+ (1680 x 1050)
    • UXGA (1600 x 1200)
    • SXGA (1280 x 1024)
    • WXGA (1280 x 768)
    • HD (1280 x720p)
    • XGA (1024 x 768)
    • SVGA (800 x 600)
  • Output
    • UHD (3840x2160)
    • WUXGA (1920 x 1200)
    • HD (1920 x 1080)
    • WSXGA+ (1680 x 1050)
    • SXGA+ (1400 x 1050)
    • SXGA (1280 x 1024)
    • HD (1280 x 720)
    • XGA (1024 x 768)
  • Content frame rate
    • 5–60 fps (up to 4K resolution at 15 fps in call)
CONTENT SHARING
  • Poly content app
  • Apple Airplay
  • Miracast
  • HDMI
  • Whiteboarding
CAMERA
  • 5x digital zoom
  • 120° FOV
  • UHD 2160p (4K) capture resolution
  • Automatic people framing & speaker tracking
  • 2 camera presets
AUDIO INPUT
  • 3x MEMS microphones, plus 2x 2nd order microphoness
  • 1x HDMI
  • 1x 3.5 mm line-in
AUDIO OUTPUT
  • Stereo speakers
  • 1x 3.5 mm line-out
OTHER INTERFACES
  • 1x USB 3.0
  • 1x USB-C
  • Bluetooth 5.0
  • WiFi 802.11a/b/g/n/ac (MIMO)
  • Multi-channel Concurrency
AUDIO STANDARDS AND PROTOCOLS
  • 22 kHz bandwidth with Polycom Siren 22 technology, AAC-LD (TIP calls), G.719
  • 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
  • 7 kHz bandwidth with G.722, G.722.1
  • 3.4 kHz bandwidth with G.711, G.728, G.729A
NETWORK
  • IPv4 and IPv6 support
  • 1x 10/100/1G Ethernet
  • Auto-MDIX
  • H.323 and/or SIP up to 6 Mbps running Poly Video App
  • Polycom Lost Packet Recovery (LPR) technology
  • Dynamic bandwidth allocation
  • Reconfigurable MTU size
  • Web proxy support—Basic, Digest, and NTLM
  • Simple Certificate Enrollment Protocol (SCEP)
SECURITY
  • Media encryption (H.323, SIP): AES-128, AES-256
  • H.235.6 support
  • Authenticated access to admin menus, web interface, and API
  • FIPS 140-2 Validated Cryptography (Validation Certificate #1747)
  • PKI/Certificate Management:
    • TLS 1.2, 1.1, 1.0 - Self-signed and CA-signed certificate support
    • CRL and OCSP-based certificate revocation checking
  • Local account password policy configuration
  • Security profiles
  • Local account and login port lockout
  • Secure defaults
  • Remote logging with support for TLS
  • Active directory external authentication
OPTIONS
  • VESA mount kit
  • Stand
  • Poly TC8
INTEROPERABILITY
  • Zoom Room native in Zoom App mode
  • All cloud service provider through Poly Video App Mode
ELECTRICAL
  • Auto sensing power supply
  • Typical operating voltage/power
    • 37VA @ 120V @ 60 Hz
    • 37VA @ 230V @ 50/60 Hz
  • Typical BTU/h: 65
ENVIRONMENTAL SPECIFICATION
  • Operating temperature: 0 to 40 °C
  • Operating humidity (non-condensing): 15 to 80%
  • Non-operating temperature: -40 to 70 °C
  • Non-operating humidity (non-condensing): 5 to 95%
  • Maximum altitude: 16,000 ft
PHYSICAL CHARACTERISTICS
  • 30 W x 4 H x 4 D (Inches) 762 W x 102 H x 102 D (MM)
  • 2.54 kg
WARRANTY
  • One-year return to factory parts and labor

*In Poly Video App Mode

PACKAGE INCLUDES
  • Poly TC8 and RJ45 (LAN) cable
  • Setup sheet
  • Printed warranty statement
PHYSICAL CHARACTERISTICS
  • Physical dimensions: 123 x 205 x 79 (mm)
  • Micro-B USB 2.0 (diagnostics)
  • Mechanical locking mechanism (Kensington lock)
  • Weight: 812 grams
OPERATING ENVIRONMENT
  • Temperature: 0ºC to 40ºC
  • Non-operating: -20ºC to 60ºC
ALTITUDE
  • Operating: 0 to 10,000 ft ASL
  • Non-operating: 0 to 35000 ft ASL
COMPATIBLE SYSTEMS
  • Poly G7500 (min 3.0 software)
  • Poly Studio X30 and Studio X50
USABILITY
  • Display: 8-inch screen
  • Aspect ratio: 16 x 10
  • Resolution: WXGA (1280 x 800)
  • Designed with built-in stand support—no external stand required
  • Viewing angle: 75 degrees (U/D/L/R)
  • Positioning/placing angle: 60 degrees
  • Tap and touch control to access call controls and administrative menus
  • Intuitive user interface
TECHNOLOGY
  • Capacitive touch sensor supports multi-touch functionality
  • Direct API command through network
  • LCD panel with LED backlighting
  • IPS (In-Plane Switching)
ELECTRICAL
  • Power over Ethernet (PoE), compatible with IEEE 802.3af Class 3
  • Low-power sleep mode
WARRANTY
  • One-year return to factory parts and labor
  • 90-day software warranty
PART NUMBER
  • 2200-30760-001
