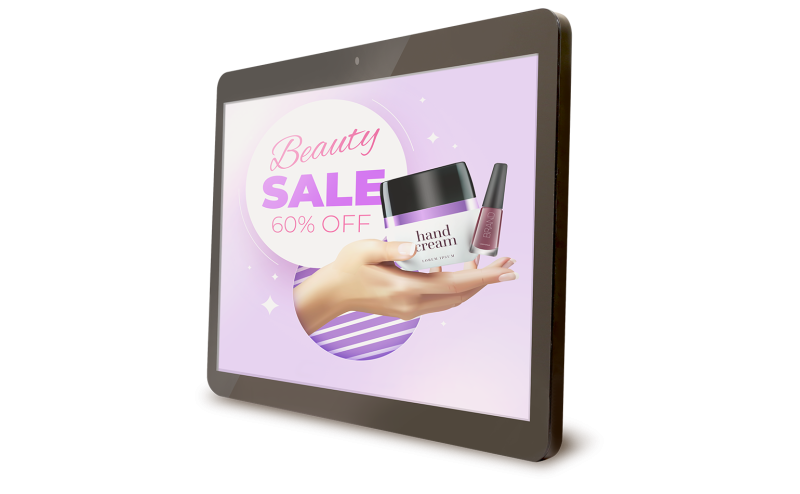

AOPEN C-Tile 21.5 inch Touch System driven by Chromebox
$2,499.00
The new C-Tile 22”, an AOPEN touch panel powered by a Chromebox. Built with quality and longevity in mind, it is the perfect all-in-one touch display for various settings.
AvailabilityOut of stock
SKU
91.CB200.2U10
Categories
C-Tile 22
Introducing the new C-Tile 22”, an AOPEN touch panel powered by a Chromebox Mini. Built with quality and longevity in mind, it is the perfect all-in-one touch display for various settings.
Full HD Resolution
A Full HD Resolution, all-in-one touch solution is used in both portrait and landscape and easily integrable without losing on the viewing angle quality.
Handles shocks and vibrations with ease
Due its fan-less design and solid-state disk (SSD). With no moving parts, shocks and vibrations are no issue.
Fanless design
Cools itself from the inside, suitable for challenging dusty and greasy environments.
| Description | An AOPEN 22″ touch panel powered by a Chromebox Mini. This solution easily runs Full HD content and is capable of running different applications based on Chrome OS. |
| Key Features | Front panel IP65 design, surface Hardness: 7H, T2.4mm FHD panel, res. 1920x1080 PCT touch 10points Fanless & design for 24/7 operation Built-in hidden dual band Wifi Antenna |
| Target Uses | Digital signage / POS / Kiosk / smart vending |
| Supported OS | Chrome OS |
| CPU | iRockchip RK3288C Quad-Core Cortex-A17 Turbo up to 1.8GHz |
| Device Management | CDM (Optional) |
| Security | Kensington Lock Google TPM |
| Memory | Dual Channel LP DDR3 4GB |
| Display and Video | ARM Mali-T764 MP4 GPU @ 600 MHz Resolution: 21.5″ 1920x1080 (16:9) Maximum Brightness: 250 nits Display Orientation: Landscape / Portrait View Angle: 178°/178° Response Time (average): 25ms Contrast Ratio: 3000:1 |
| Touch Type | Projected Capacitive Touch, support 10 points touch Surface Hardness: 7H, 2.4mm |
| Front Camera | Camera 2M pixel (Optional) |
| Audio | Maxim MX98090 Built-in stereo digital mic and speaker 2W speaker |
| LAN/Wireless | Giga LAN x 1, 10/100/1000 Mbps Realtek RTL8211E with LED indicate WiFi+ Bluetooth; WiFi 802.11 b/g/n/ac + BT4.2 |
| Storage | EMMC 5.0 16G |
| Side I/O | Reset button x 1 Kensington Lock Hole x 1 Power Indicator x 1 |
| System I/O | AC Inlet x 1 USB 2.0 Port x 2 RJ45 LAN Jack x 1 External Antenna Connector x 2 Power button x 1 (Hidden type) |
| Thermal Design | Fanless |
| Adapter | Integrated inside the C-Tile 22 |
| Power | AC 100 ~ 240V |
| Operating Temperature | 0 ~ 40ºC (32 ~ 104ºF) |
| Physical Specification | Dimension: WxHxD (mm) 525.4 x 332 x 72.6 Packaging Dimension: 635 x 445 x 190 Gross Weight: 9.8 kg Net Weight: 8.34 kg Fan: No Housing Material: Metal Colour: Black |
| What’s Included | AOPEN iC22F0 Power Cord 1 year limited manufacturer commercial warranty Quick Guide Push Pin |
| Accessories | Superman floor stand Hockey floor stand Single/Dual side table stand |
