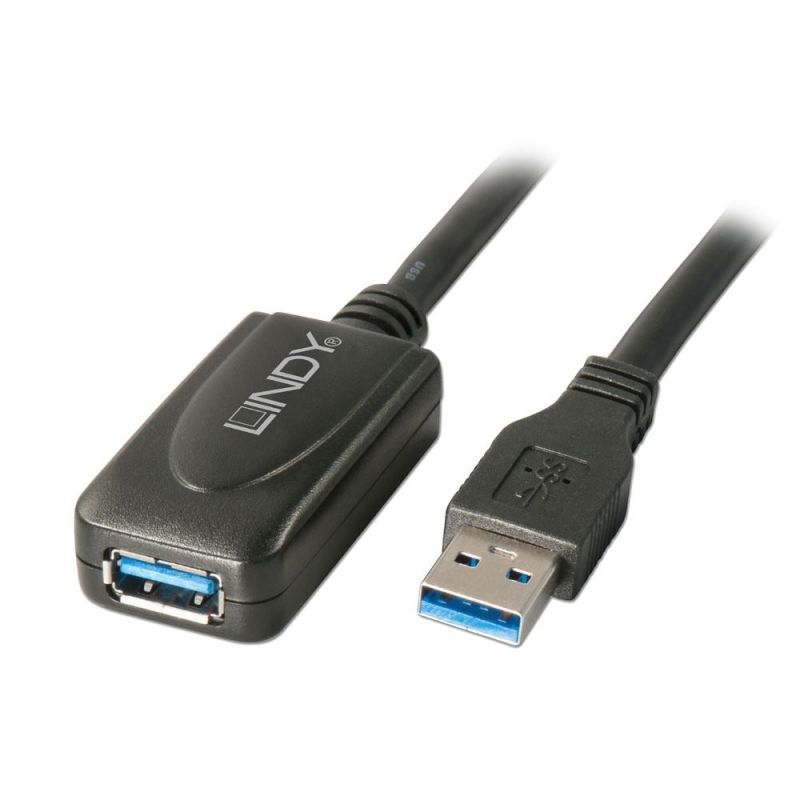

5m USB 3.0 Active Extension Cable, USB Type A Male / Female

Connectors

Connector A: USB Type A Male
Connector B: USB Type A Female
Power: -
Housing Material: Plastic
Connector Plating: Gold 3µ
Pin Construction: Brass
Pin Plating: Gold 15µ
Dimensions (approx.) WxDxH:
- USB A Male: 16x48x6mm (0.63x1.89x0.24in)
- USB A Female: 24x46x12mm (0.94x1.81x0.47in)

Cable Construction

Length: 5m (16.4ft)
Standard: USB 3.1 Gen 1 / 3.0
Colour: Black
Type: Round
Jacket Diameter: 5.5mm (0.22in)
Jacket Material: Matt PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28AWG+24AWG
Shielding: AL Mylar

Specifications

Supported Bandwidth: 5 Gbps
Nominal Attenuation:
1.5dB/2M@0.1GHz
5.0dB/2M@1.25GHz
7.5dB/2M@2.5GHz
25dB/2M@7.5GHz
Minimum Bend Radius: 55mm (2.17in)
Maximum Tensile Load: 1500PSI min
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: 0°C - 70°C (32°F - 158°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.1 Gen 1 / 3.0

Miscellaneous

Packaging Type: Blister
Packaging Dimensions: 237x138x60mm (9.33x5.43x2.36in)
Net Weight: 0.22kg (0.49lb)
Gross Weight: 0.289kg (0.52lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH
